We Manufacture

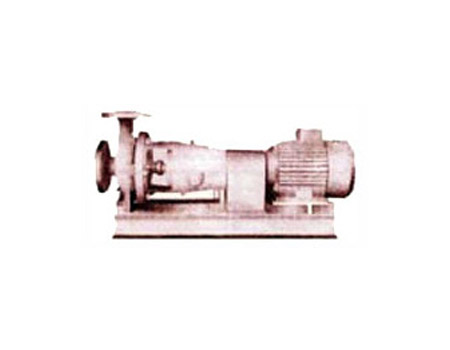

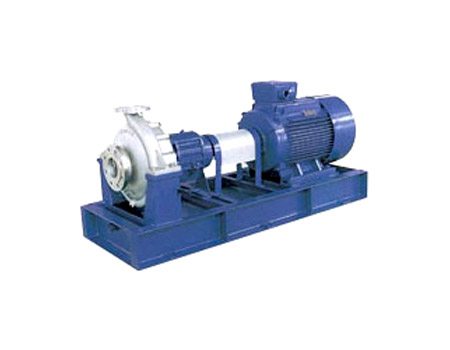

Centrifugal Pumps

Leveraging on our expertise, we manufacturers and fabricate quality Chemical Process Pumps. Our range of pumps find a wide application in chemicals, petrochemicals, fertilizers, oil refineries, paper mills, sugar mills, dairy, pesticides, pharmaceutical industries and steel plants. Apart from manufacturing, we also provide fabrication services to our clients. Depending on the nature of the liquid to be handled, we accordingly seal and pack the product. Our range of Chemical Process Pumps are widely known for high performance and reliability.

The varied specifications of the product are as follows:

Metallic: SS-316
Alloy: 20, Ni-Hard
Non Metallic : Impervious Graphite & Polypropylene

Material Wet Parts

METALLIC	NON METALLIC
1. S. S. 316	1. Impervious Graphite
2. Alloy 20	2. Cast Steel with Rubber Linning
3. Ni. Hard
4. Ductile Iron
5. Phosphorus Bronze / Gun Metal

Shaft Sealing

Gland Packing.
Mechanical Bellow Seal with Tungsten Carbide / Glass Filled Teflon ( for clear liquid.)
Dry Lock special Hydraulic Seal :- for continuous circulation & for solid ( Abrasives ) particles mixed with liquids.

Advantages of Dry Lock

Dry Lock Special Hydraulic shaft seal arrangements

Designed to prevent shaft leakage while running as the pump has expeller. The impeller and expeller rotate together during operation creating a hydraulic seal that keeps liquid away from the shaft.
Static seal prevents leakages while the pump is shut down.
The Pumps can be run dry without damaging internal parts and seal faces.

Models of Pumps

1440 RPM

No.	Type	Head ( Max.) m	Capacity ( Max.) M3 / Hr.	HP ( Max. )	Suction NB	Discharge NB
1.	T - 1	6	6	1	25	25
2.	T - 15	10	10	2	40	32
3.	T - 20	20	18	3	65	40
4.	T - 25	25	25	5	80	50

2990 RPM

No.	Type	Head ( Max.) m	Capacity ( Max.) M3 / Hr.	HP ( Max. )	Suction NB	Discharge NB
1.	T - 1	10	10	2	25	25
2.	T - 15	20	20	2	40	32
3.	T - 20	35	40	10	65	40
4.	T - 25	60	80	15	80	50

Application

FOR IMPERVIOUS GRAPHITE PUMPS

Highly corrosive liquids at Temperature up to 180 C ( e.g. H2SO4, HCI, CTC, Ethyl Methyl Chlorides, Sodium Chloride, Sulphuric Hydrochloride, Hydro Fluoric Acid, Hydro Bromic Acid & etc. )

Material Selection :

MANGESH 's Staff has the expertise and experience to make the material recommendations may be in Metallic or Non - Metallic.

We are also in position to supply Vertical Pumps of same capacity as Horizontal Pumps.

Advantages of Vertical Pumps

Seal less application.
No priming required.
No Extra Space required (as mounted on the manhole or on the open tank.)
